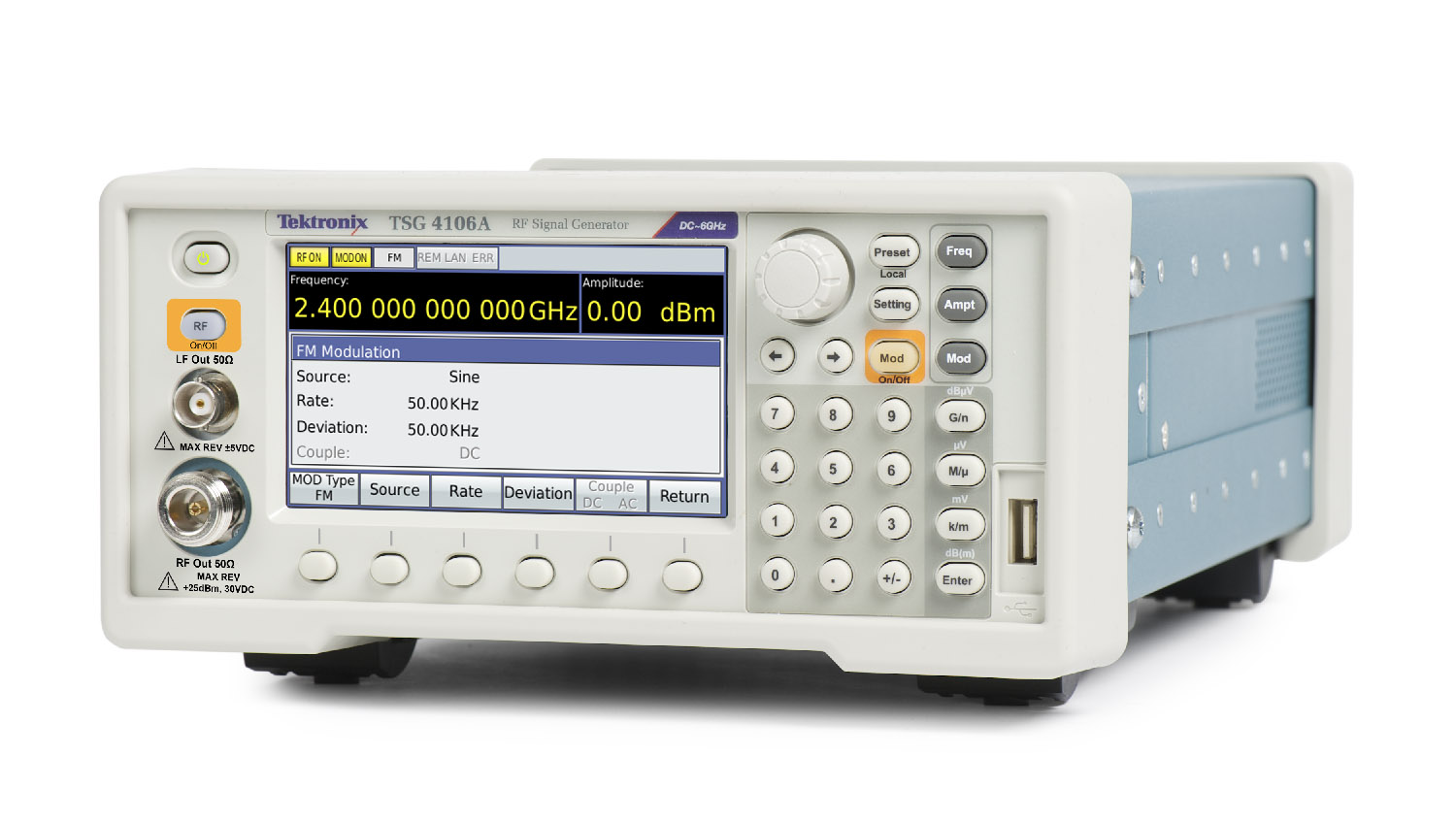

TSG4100A RF Vector Signal Generator
|
TSG4100A Series RF Vector Signal Generators offer mid-range RF performance and up to 200MHz modulation bandwidth. They allow a convenient, in-field software upgrade to easily transition units from analog to more advanced vector and digital modulation capabilities, providing the most flexible configuration and best CAPEX protection. TSG4100A Series complement other leading mid-range RF test solutions from Tektronix, such as the USB-based RSA306 Spectrum Analyzer and MDO4000B and MDO3000 Mixed Domain Oscilloscopes. |
 |
Overview
| Features | Benefits |
| Internal IQ bandwidth up to 6MHz | Output basic digital RF signals and narrow bandwidth communication signals. |
| External IQ bandwidth up to 200MHz | Super wide bandwidth for wireless/communication signals |
| Easily upgrade to internal vector modulation source with software |
Accommodates both analog and vector signal generator applications at an extremely low cost |
| OCXO time-base provides <±0.002ppm temperature stability an <±0.05ppm aging stability |
Superior aging and stability performance for R&D applications |
| Output frequency coverage starts from true DC | Eliminates the need to add other instruments for DC/low frequency applications |
Models in the TSG4100A RF Vector Signal Generator Series
| Model | In-field Upgradable Options | Frequency Coverage |
| TSG4102A | Basic Vector Modulation, GSM, EDGE, P25, W-CDMA, DECT, NADC, PDC, TETRA, Audio Analysis, External IQ Modulation |
2 GHz |
| TSG4104A | Basic Vector Modulation, GSM, EDGE, P25, W-CDMA, DECT, NADC, PDC, TETRA, Audio Analysis, External IQ Modulation |
4 GHz |
| TSG4106A | Basic Vector Modulation, GSM, EDGE, P25, W-CDMA, DECT, NADC, PDC, TETRA, Audio Analysis, External IQ Modulation |
6 GHz |
